A Whole New Level of Aquarium Monitoring and Control
About HYDROS Control X10
The Control X10 offers a range of new advanced features, including multi-dosing heads and a salinity probe port (salinity probe sold separately), taking aquarium control to a whole new level. This highly versatile controller can effortlessly handle essential functions for maintaining a healthy aquarium. With just one Control X10, you can dose liquids, monitor temperature, and track pH or ORP levels. Additionally, you can expand its functionalities by using additional accessories to test salinity and alkalinity, monitor water levels, detect leaks, and power other Control devices.
Whether you have a saltwater aquarium, freshwater tank, or pond, the Control X10 can be a standalone controller or seamlessly integrated into other HYDROS Controls to create a more comprehensive system. Operating on a HYDROS Safety Net and boasting an IP65 rating, this controller ensures that your equipment and aquatic life thrive in a safe and secure environment. Moreover, all HYDROS products are meticulously engineered, assembled, and supported in the USA.

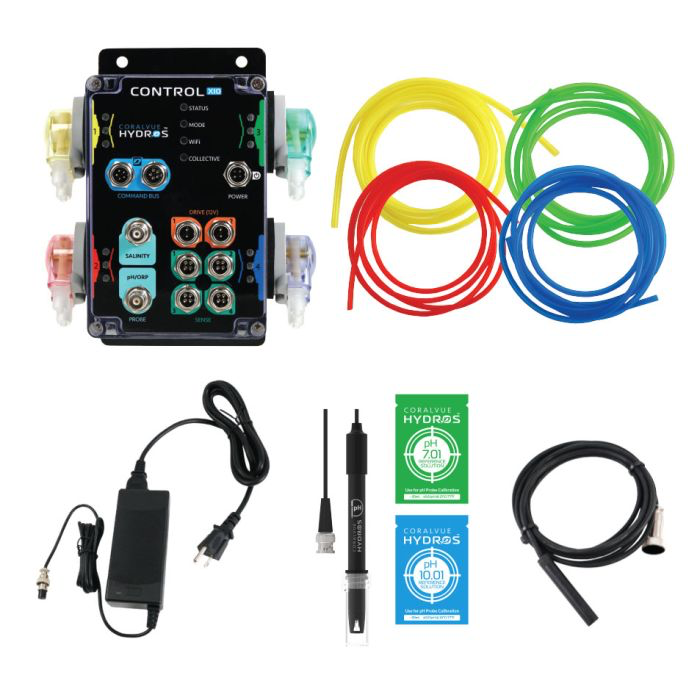

Control X10 Includes:
- X10 Controller
- Power Supply
- pH Probe with Calibration Solutions
- Temperature Sensor
- Four (4) 10ft Dosing Tubing
- Calibration Beaker
X10 Specifics

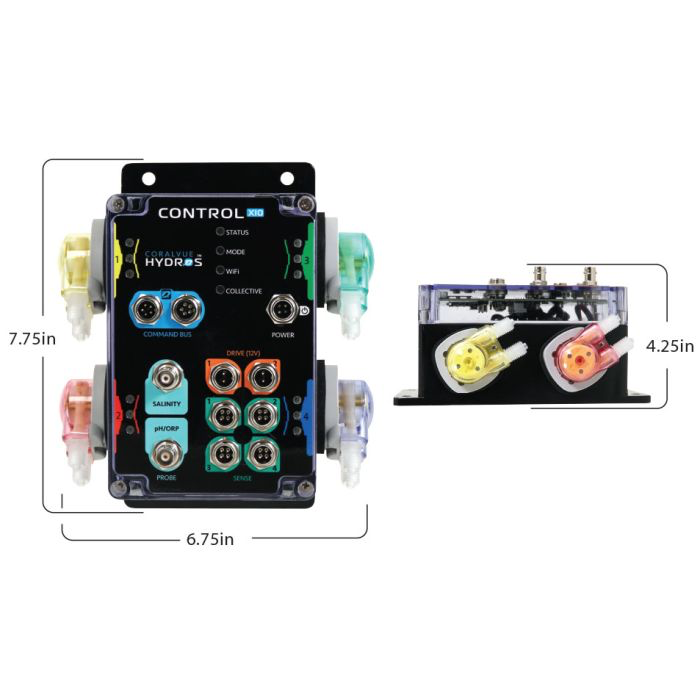

Dimensions (LxWxH): 7 3/4 x 6 3/4 x 4 1/4in
What you can expect from your HYDROS Smart Device
*HYDROS WiFi Power Strip, Control XP8, or Smart Plug required, but not included with Control X10
- Control your HYDROS device(s) from anywhere in the world using the technologically advanced HYDROS cloud-based app
- Ability to monitor and control your HYDROS device(s) locally through WiFi
- A fast dual-core 32-bit processor that allows control decisions to be made within each device
- User sets the alerts and notifications
- Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
- HYDROS Command Bus connections to transfer data and power to devices
Quick & Easy Setup
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of a smart aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
IP65 Rated – Splash Proof, Dust Proof, and Secure Connection
HYDROS devices look like industrial controllers because they are built to function in the harsh environment of a marine aquarium. The IP65-rated HYDROS enclosure and aircraft-style connectors ensure long-term reliability in the face of splashes and corrosive salt spray.
Command Bus - 2 Available
The Command bus communicates with other HYDROS devices for the ultimate failsafe and can also power other Control devices.
Drive Port - 2 Available
The Drive Ports provide switched 12V DC power for running small HYDROS aquarium devices. The Control continuously monitors the exact current supplied by each port, so you will be immediately notified if a motor or pump quits drawing current or draws too much.
Each drive port can handle up to 1.5A, and the entire device can handle up to 3A in total.
Drive Ports Currently Support:
- Auto Top-Off (ATO) pumps
- Dosing pumps
- Cooling fans
- Cabinet LED lights
- Solenoids - 1/4in water and CO2 control
- Steering valves and relays
Stirrers - HYDROS IV
Sense Port - 4 Available
The Sense Port is a new concept in aquarium parameter measurement. HYDROS devices include several Sense Ports. A Sense Port is a generic input port that can accept data from numerous different types of sensors.
Sense Ports Currently Support:
- Temperature sensor - Either air or water
- Fluid level - Optical sensors to measure liquid levels
- Leak detection - Monitoring for both point and wide area leak detection
- Flow rate - Measures the amount of fluid flowing through a pipe
- Total dissolved solids - Dual measurement of the TDS levels from your RODI system
Salinity Probe Port - 1 Available
The Salinity Probe is a special probe port for use with conductivity probes to monitor the salinity of your aquarium's water. Salinity Probe Kit is not included but is required to monitor Salinity.
Isolated Testing Vessel
This add-on ensures that the test sample is physically separated, preventing any electric interference from other equipment in the aquarium system. HYDROS iV is not included but recommended.
pH/ORP Probe Port - 1 Available
One of the most remarkable ports on the HYDROS Control X10 is the Probe Port. You can connect an ORP or a pH probe to the Probe Port but, this is no ordinary pH input! The circuitry is based on an ultra-high-quality input chip specifically designed for these types of probes. Each pH input provides digital galvanic isolation from the rest of the system. Galvanic isolation prevents interference with other accessories connected to the system like motors and pumps. Digital Galvanic isolation preserves the accuracy of the measurement by converting the signal to a digital domain before crossing the isolation threshold.
pH/ORP Probe Ports Currently Support:
- pH Measurement
- ORP Measurement
- Alkalinity input from an external measurement system

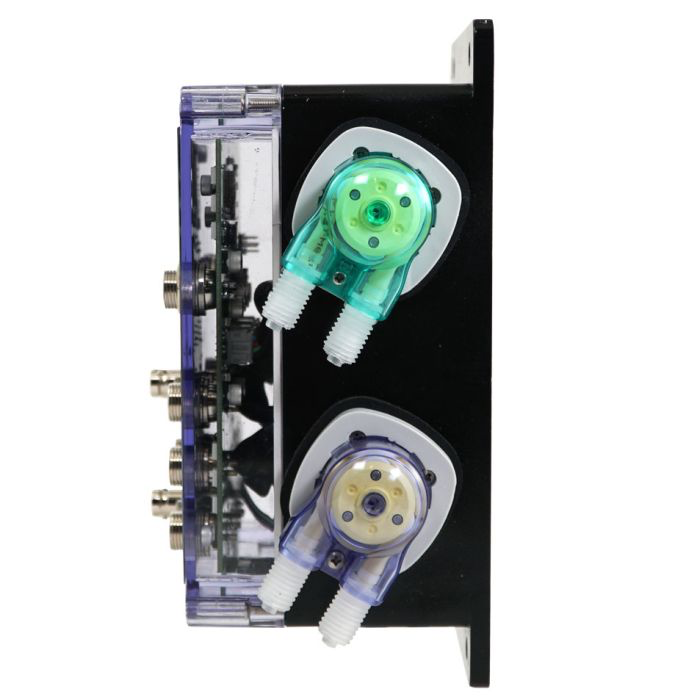

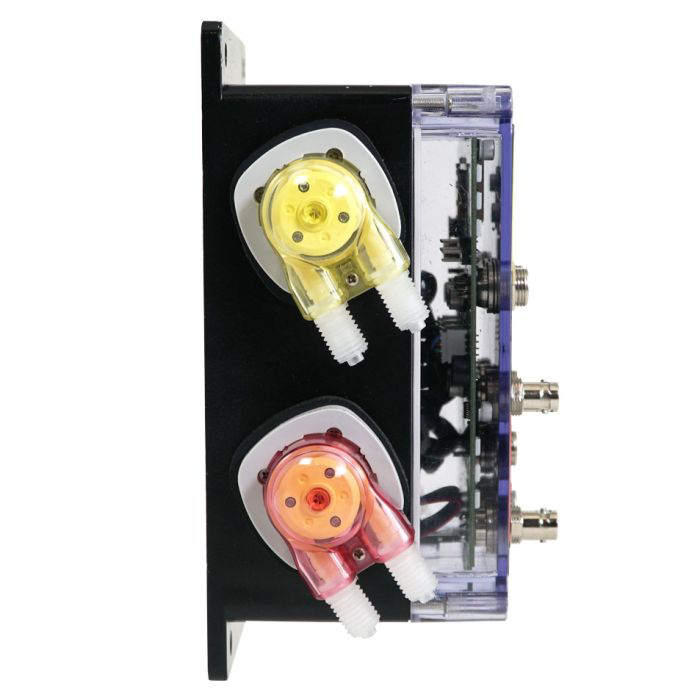

High Precision Stepper Dosers - 4 Available
4 independent fluid metering stepper pumps provide remarkable precision dosing your favorite two part, trace elements, water changes, liquid food additives, and alkalinity testing to name a few common uses.
Rated pump speed: -100mL/min to 100mL/min
Stepper Motor Features:
- Quiet Operation
- Can run in reverse
- Exact Metering of Liquids
- Color-Coded Dosing Heads and Tubing
- Easy to Service
Control up to 8 WiFi Devices
The HYDROS App allows you to create rules and set schedules to control our 4-Outlet WiFi AC Power Strips and Smart Outlets. Quickly turn on or off different pieces of aquarium equipment like pumps, powerheads, lights, heaters, algae scrubbers, UV sterilizers, protein skimmers, and more.
Example Setup A: Alkalinity and Salinity Monitoring
Example Setup B: Balling Method Dosing with Salinity Measurement
