IceCap
Aquarium Heater Controller - IceCap
Aquarium Heater Controller - IceCap
Couldn't load pickup availability

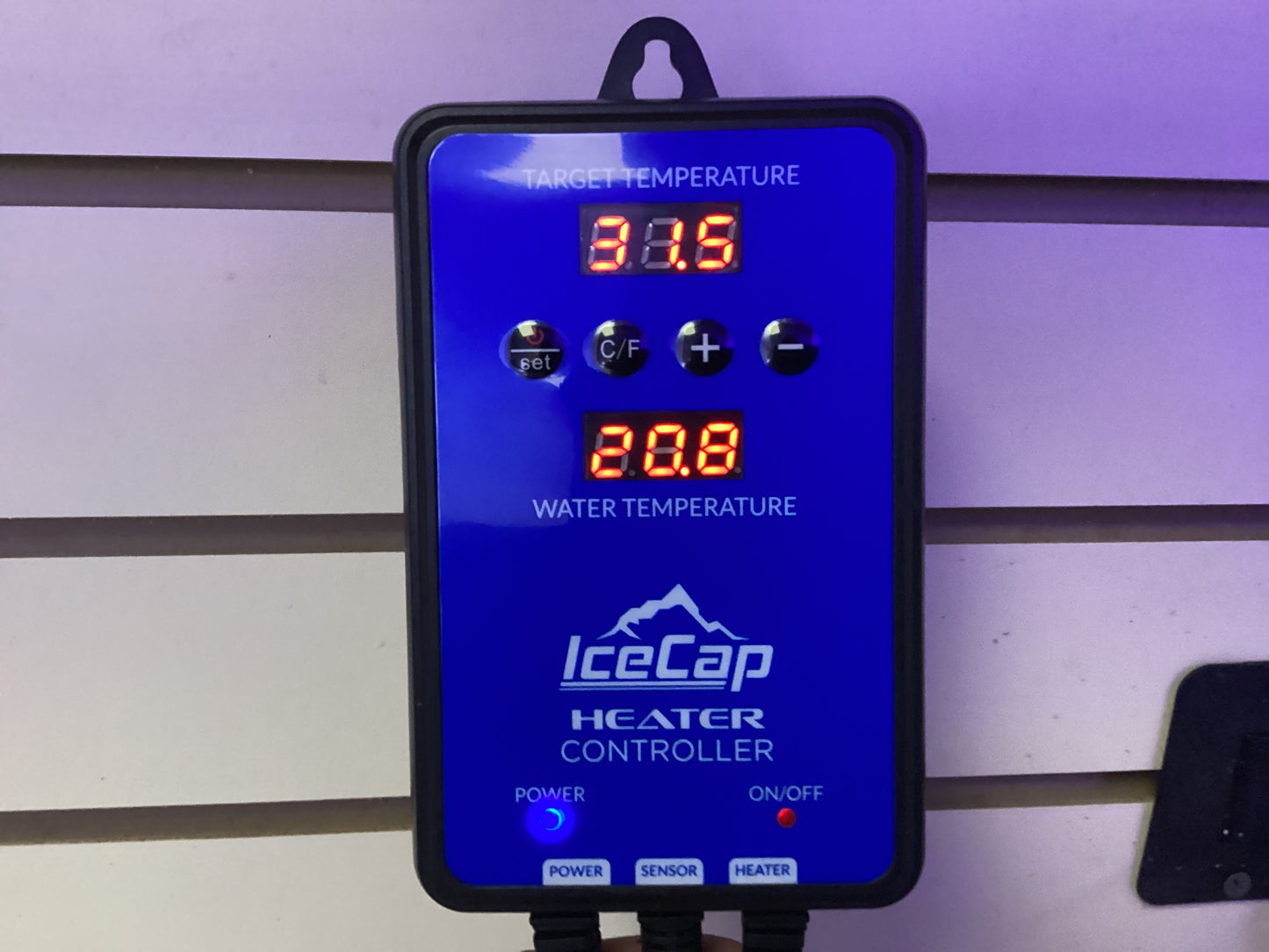

Aquarium Heater Controller
The IceCap heater controller can connect up to two heating elements (sold separately) and provides precise temperature control for an aquarium. It includes dual-heating power jacks and supports up to 1000 watts. For added safety, you can use it in conjunction with an aquarium system controller.
Features
- Dual grounded output heater control
- Accommodates a combined total of 1000 watts
- Accurate heat control
- For freshwater and marine aquariums
- 1-year limited warranty
At Insidereef, we use temperature controllers, like this one from IceCap, on every single tank, ensuring stable and precise water temperatures for both our saltwater and freshwater systems. Maintaining the correct temperature is critical for the health of our fish, corals, and plants, which is why we rely on these controllers to prevent dangerous fluctuations. For added redundancy and reliability, we pair them with the Hydros Controller, providing an extra layer of protection against heater failures or overheating. This proactive approach allows us to create consistent, stress-free environments, keeping our aquatic life thriving in every tank we maintain.
Specifications
Temperature Control Modes: On/Off Control, Heating
Temperature Control Range: 20-34°C / 68-93°F
Temperature Resolution: 0.1°C / 32°F
Temperature Accuracy: ±1°C / ±1°F
Ambient Temperature: <35°C / 95°F
Audible Alarm: Over Temperature Alarm
Input Power: 100 ~240VAC/60Hz
Relay Contact Capacity: Heating (10A, 100-240VAC)
Controller Body Dimensions: 3.125in x 5.375in x 1.125in (LxWxH)
Probe Cord Length: 5ft
Heater Outlet Cord Length: 18in
Calibration Offset: ± 5.0° (C/F) in 0.5° increments
Heater controller only - Requires a proper-sized heater(s) to operate.
For Indoor use
Button Functions
Hold and press the <SET> button for 5 sec. to switch the Controller ON or OFF. Press <SET> button once to enter the target temperature setting mode.
Press the <C/F> button to switch the display between Celsius and Fahrenheit.
Press the <+> button to increase the Target Temperature and press the <SET> button to save your setting.
Press the <-> button to decrease the Target Temperature and press the <SET> button to save your setting.
Controller Temperature Calibration
Check the aquarium's water temperature on the thermometer against the temperature shown on the Heater Controller. If there is a large difference between the thermometer and the Heater Controller, you must calibrate it.
- Press and hold <+> and <-> buttons simultaneously for around 3 seconds. The Water Temp display will begin blinking. The original allowance value shows at 0.0.
- Press <+> or <-> button to adjust up or down the value ± 5.0° (C/F) in 0.5° increments
- Finally, press the Set button to confirm calibration setting. The bottom display will change back to show the water temperature
WARRANTY
CoralVue, Inc. and IceCap hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
